Description

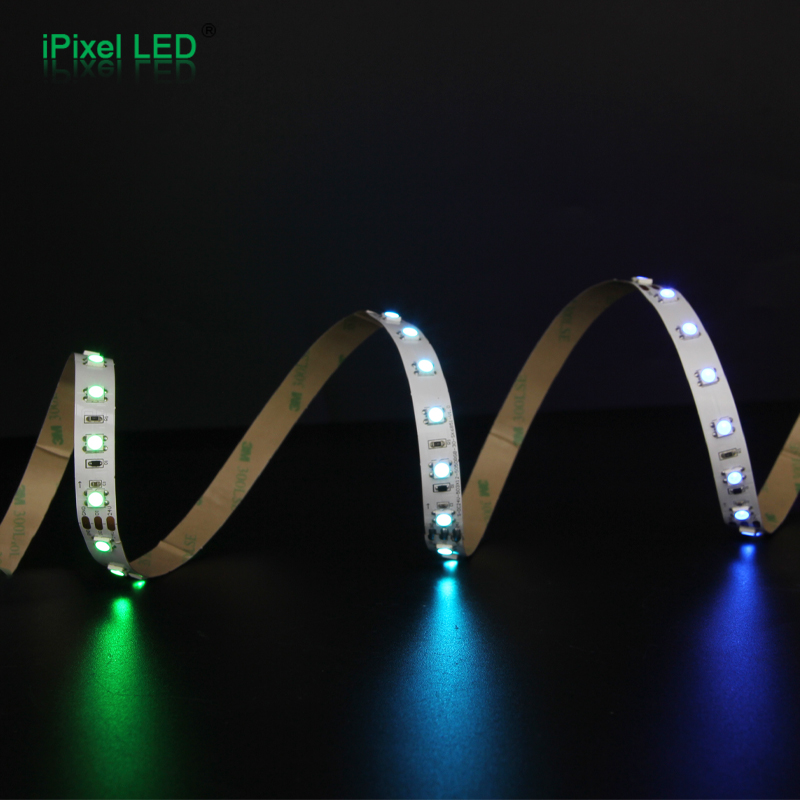

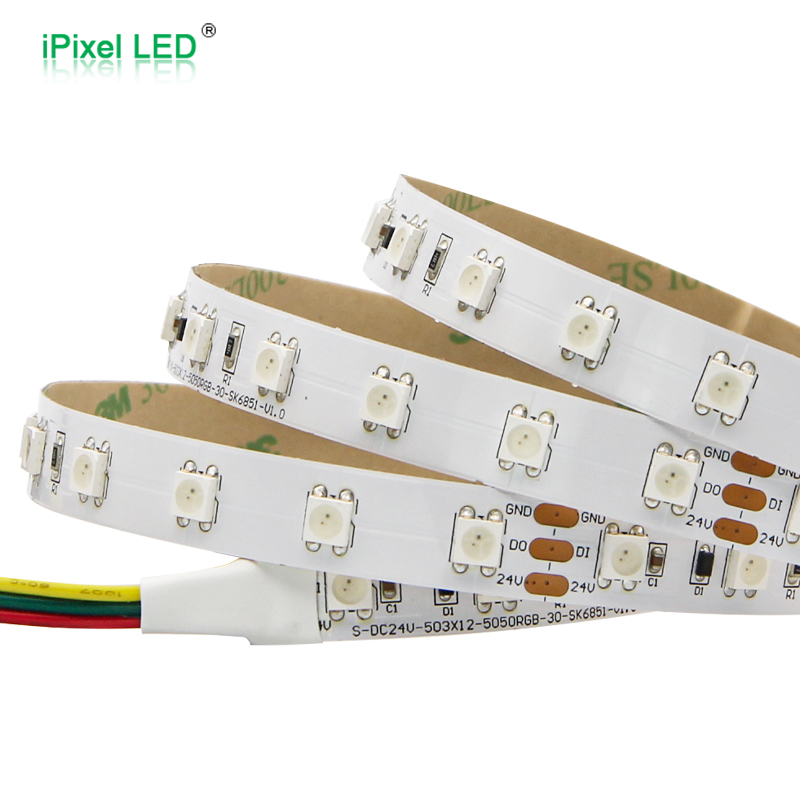

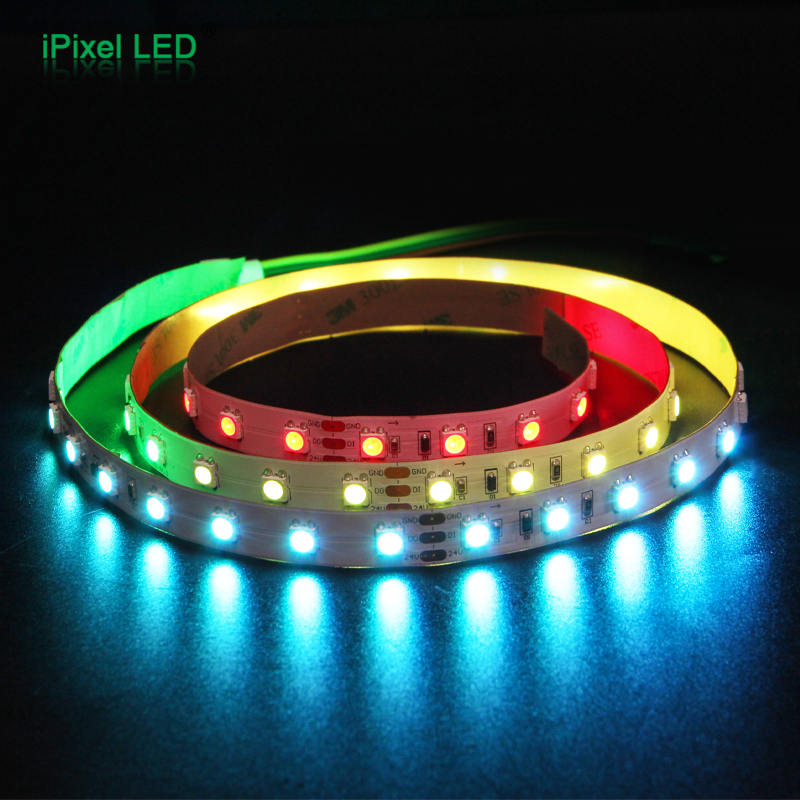

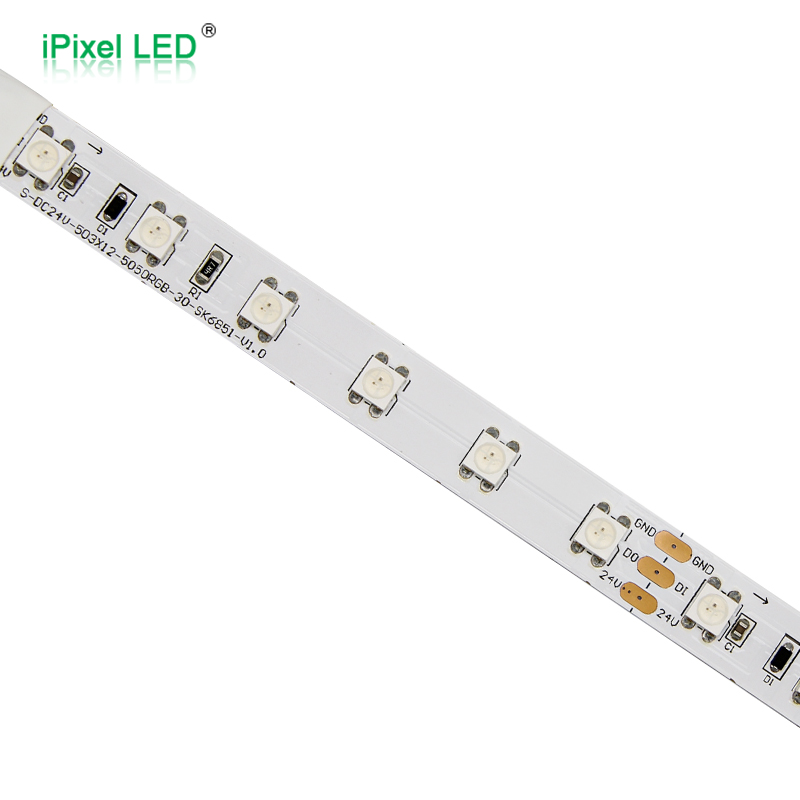

5050 high brightness led, 60LEDs/M
Each LED addressable individually controlled, with voltage DC24V
SPI signal
FPC color: white, 1+2 OZ copper thickness FPC
Standard length 5m per roll, the length also can be customized
| PN | S012060CC3SE8 |
| Voltage | DC24V |
| LED Type | SMD5050RGB |
| LED Quantity | 60LEDs/m |
| IC Quantity | 60IC/m |
| Dimension | 5000*12mm |
| Protocol | SPI-SK6851 |
| IP | IP20/IP64/IP65/IP67 |
| Power | 7W/m |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
